Danley Dowel

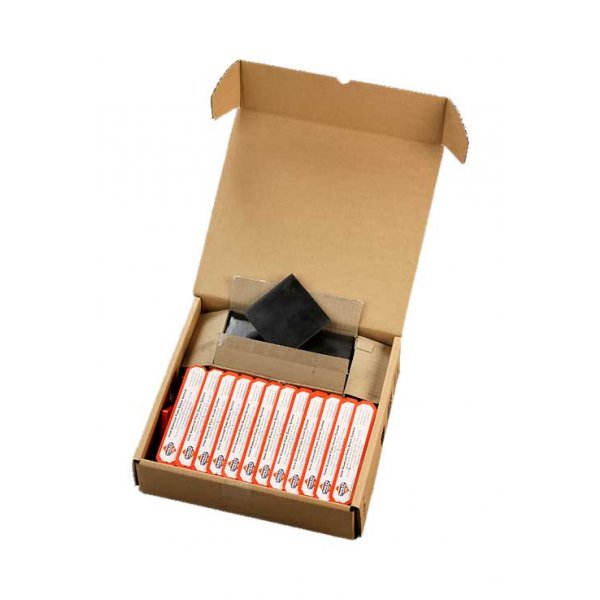

Danley Dowels are a tapered plate dowel and sleeve system designed to reduce restraint for day joint applications in concrete industrial floors and pavements. Danley Dowels are designed as a fast fix to timber form system that provides load transfer across the joint and minimises differential deflection between adjacent slab panels. Danley Dowels provide a low cost solution by eliminating the need for drilling or processing of formwork that is required with traditional round and square dowel systems. Danley Dowels come pre-packaged with all components ready for installation. Danley Dowels are available in 6 mm and 10 mm thickness.

• Nailing flange with double-headed nails provides secure attachment to the forms.
• Double-headed nails help retain the sleeve in the concrete when stripping the forms.
• Plastic sleeves allow the dowel to be installed after the forms are stripped.
• Available in 6 mm and 10 mm thickness.

Benefits:

• Better performing pavements and slabs: eliminates out of joint cracking
• Simple installation: easy sleeve installation, form removal the next day, and dowel insertion
• Reduces labour: eliminates need for drilling or processing forms
• Improves customer satisfaction: less repairs and maintenance
• Repeat business

• ​Compliance with TR34, TR66, ACI 330.2R-17, and ACI 360R-10
• Performance engineered design: provides highest performance in controlling joint deflection and minimises restraint
• Allows for slab shrinkage and lateral movement on the horizontal plane
• Reliable pavement performance
• Sleeve provides expansion
• Sleeve ensures the plate dowel is held perpendicular to the joint

• Long life-cycle pavements and slabs
• Increases tenant satisfaction
• Reduces floor maintenance and downtime costs over the lifecycle of the facility
